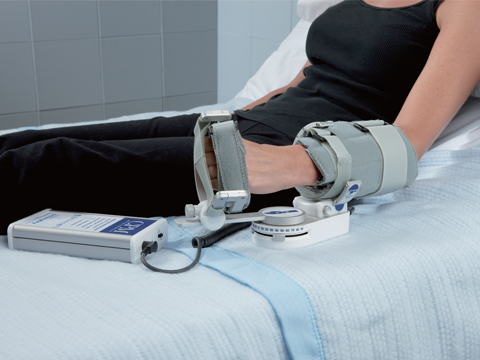

Wrist joint CPM-W1

HOME PRODUCT CPM rehabilitation therapy

The functions of ulnar deviation and radial deviation of wrist joint

The functions of flexion/extension combined with ulnar deviation/radial deviation

With portable design, easy to move in the department

Spasm reversal function with adjustable strength

With bilateral adaptive structure, the left and right limbs can be treated with simple adjustment

With snap on angle adjustment mode, easy to adjust parameters

With portable instrument box, convenient to transport

Product introduction

Product parameters

Joint range of motion:

Flexion: max angle 60°, min angle -60°

Extension: max angle 60°, min angle -60°

Ulnar deviation: max angle 60°, min angle -60°

Radial deviation: max angle 60°, min angle -60°

Product parameters

Angular velocity: 80°/min～220°/min, 6-stage adjustable

Max treatment time: ≤480 minutes

Safeguard: reverse in case of resistance, the force adjustable in 4 gears

End pause: 0~30 seconds adjustable respectively

Resistance reverse force (N): 1^st gear≥60, 2^nd gear≥80, 3^rd gear≥100, 4^st gear≥120

Operation screen: 5-inch HD capacitive touch screen operation

Technical parameter

See the description for technical parameters. Please contact us for more detailed technical parameters!

Standard equipment

See the description for the standard configuration. Please contact us for more detailed standard configuration!

Other instructions

There are no other instructions for this product.
