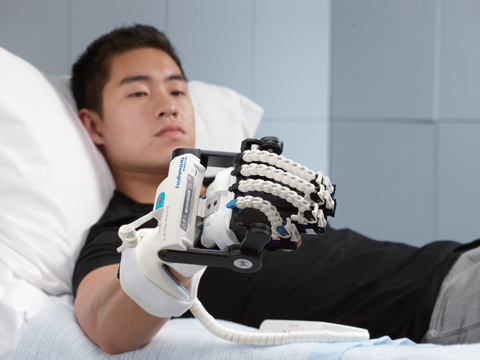

Hand CPM-F1

Hand CPM-F1

Product features

With chain design, it conforms to the biomechanical principle of hand joints

Running speed 3°/s~18°/s cycle adjustable

Resistance reverse force≥14N at low speed, ≥32N at high speed

With complex fist flexion function

Pause function at both ends, which can selectively lock some or all functions to prevent patients from misoperation

With patient measurement function, record the total treatment time of patients through the built-in meter

The noise generated by the device during normal use shall not be greater than 60dB of sound pressure

Product introduction

Product parameters

Joint range of motion:

MCP Joint (metacarpophalangeal joint): 0°- 90°

PIP Joint (Proximal interphalangeal joint): 0°- 110°

DIP Joint (Distal interphalangeal joint): 0°- 70°

Product parameters

Angular range of motion: 0-270°

Angular velocity: 3°/s ~18°/s, 6-stage adjustable

Max treatment time: ≤480 minutes

Safeguard: reverse in case of resistance, the force adjustable in 4 gears

End pause: extension and flexion adjustable for 0~30 seconds respectively

Resistance reverse force (N): 1^st gear≥14, 2^nd gear≥20, 3^rd gear≥26, 4^st gear≥32

Operation screen: 5-inch HD capacitive touch screen operation

Technical parameter

See the description for technical parameters. Please contact us for more detailed technical parameters!

Standard equipment

See the description for the standard configuration. Please contact us for more detailed standard configuration!

Other instructions

There are no other instructions for this product.
