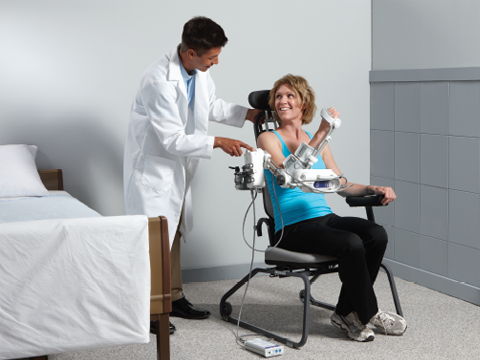

Shoulder joint CPM-S1

Product features

Function of abduction, adduction, external and internal rotation;

Function of synchronization to achieve extension/flexion+internal/external rotation, abduction/adduction+internal/external rotation;

With thumb emergency stop switch, patients can stop treatment at any time;

With function of spasm recognition to avoid patient injury;

Bilateral adaptive structure, the left and right limbs can be treated by simple adjustment;

Snap on angle adjustment, easy to adjust parameter;

Portable instrument box, convenient to transport.

Product introduction

Product parameter

Joint range of motion:

Flexion: maximum angle 60°，minimum angle -60°

Extension: maximum angle 60°，minimum angle -60°

Ulnar deviation: maximum angle 60°，minimum angle -60°

Radial deviation: maximum angle 60°，minimum angle -60°

Product parameter

Trainable joint:

Angular velocity: 80°/min~220°/min, 6-stage adjustable

Maximum treatment time: ≤480 minutes

Security: with resistance reverse, 4 gears force adjustable

End pause: 0~30 second adjustable

Resistance reverse force (N): 1st gear≥60；2nd≥80；3rd≥100；4th≥120

Operation screen: 5-inch HD capacitive touch screen operation

Technical parameter

See the description for technical parameters. Please contact us for more detailed technical parameters!

Standard equipment

See the description for the standard configuration. Please contact us for more detailed standard configuration!

Other instructions

There are no other instructions for this product.
